System Layouts

The DPX-M portable time delay controller is the heart of a clinical alarm enhancement and extension system. The unit is supplied with a plug in 24 volt wall transformer and a power failure alarm battery clip. It will accept input signals from our Model : MIC-M noise sensor or an auxiliary "normally open dry contact input"

Once the DPX-M receives an input, an adjustable (0 to 30 seconds) time delay period starts. If this delay period is exceeded the "Output" jack closes enabling control over an external system (e.g.. Nurse Call system). Also the "Remote" jack supplies 20 volts DC to power our Model : PZ-M remote buzzer.

The MIC-M is a noise "volume" sensing device. This means it must be mounted as close as possible to the source of the alarm signal, normally 1 to 2 inches. The sensitivity of the unit is set to a point that will turn on the red "Active" L.E.D. (normally 75-85% of max.). With a limited range setting external room noises will not be detected.

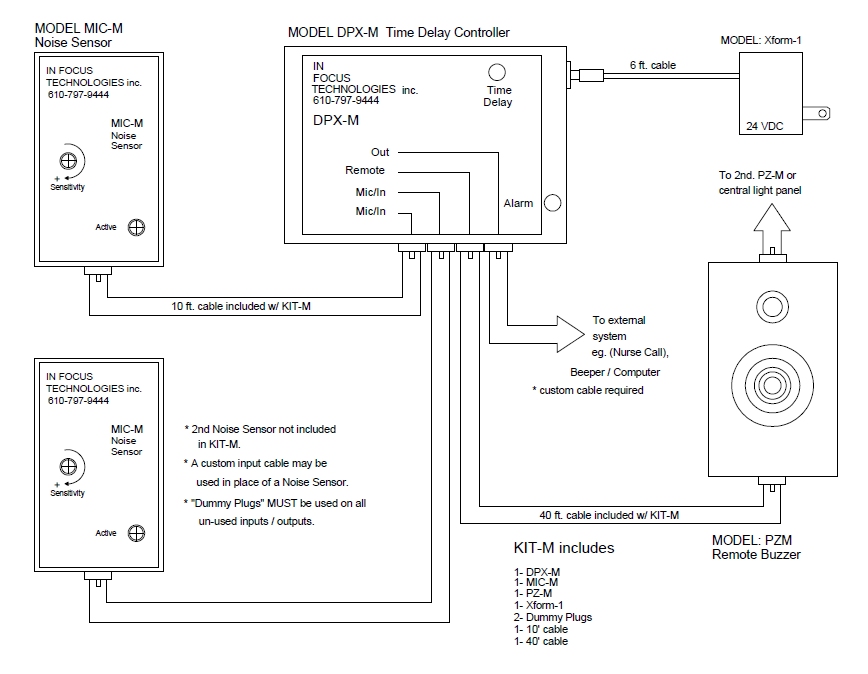

Kit-M Layout

The KIT-M system is a stand alone fully portable remote alarm system. Supplied with a PZ-M (remote lamp / buzzer) in lieu of a nurse call cable.





KIT-CA Layout

The KIT-CA system is a stand alone fully portable remote alarm system. Supplied with a nurse call cable in lieu of a PZ-M remote lamp / buzzer.




clinical-alarm-direct connect-system

Direct Connection Layout

This configuration shows a direct connection input configuration.





Built in layout

This configuration shows the use of hidden wiring, existing nurse call corridor light use and a central power supply.





DPX-I Layout

The KIT-DPX-I system allows the addition of a  time delay to an existing direct connect setup. The adjustable time delay insures that only legitimate alarms are seen and heard. The constant alarming (Alarm Fatigue)  that is so common in many facilities is reduced dramatically.





ANN-5 Layout

The ANN-5 lamp panel provides a central audio-visual monitoring point for our corridor mounted PZ-M remote lamp-buzzers.
