KIT-NC2

Self contained system

82-100db audio output

Visual indicator

Dry contact input

Normally Open operation

Fail Safe battery

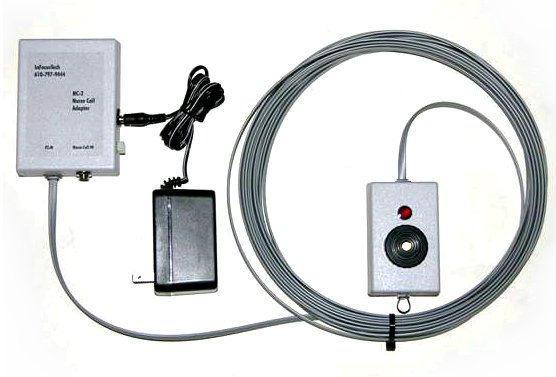

The KIT-NC2 system pictured at right provides a low cost stand-alone remote alarm system with battery fail-safe capability. The 9 volt battery will provide a constant fail-safe alarm when 115vac line power is lost or power is disconnected from the unit.

The system utilizes our model PZ-M remote lamp / buzzer, model NC-2 Nurse Call interface and model XFORM-1 wall transformer. A 40' double-ended modular cable completes the system.

  Hear our unique remote alarm tone.

Setup & Testing

1. Select a location for the NC-2 within 4’ of a 110v electrical outlet. The battery must be tested after each reinstallation and at regular intervals.

2. Mount the NC-2 to a clean smooth surface with 3m Dual Lock®.

3. Select a location for the PZ-M remote lamp / buzzer, normally in the hallway above the door.

4. Install the 40’ cable between the NC-2 and PZ-M being careful to dress the cable so it remains clear of obstructions and potential damage.

5. Use the provided wire tie to secure the Xform-1 and PZ-M cables from accidental disconnect.

6. Install a normally open dry contact ¼” mono male plug ended cable.

7. When the external system provides a contact closure the PZ-M will sound as long as the contact remains closed. It will self reset when the external contact opens. To test the 9 volt battery, unplug the Xform-1 from the wall or unplug its barrel connector on the NC-2. The PZ-M will alarm without a light until power is restored.

8. This system must be tested after each reinstallation and at regular intervals

The mechanical integrity of these devices must be maintained to assure proper operation. All mounting hardware, cables, connectors and plugs must be regularly inspected for wear and tear.  All devices must be securely mounted at all times. If a mounting situation arises that does not seem safe do not use the system! Contact our technical department for advice on correcting those situations.
