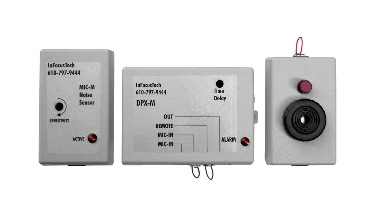

KIT-M
components, MIC-M (noise sensor),
DPX-M (time delay), PZ-M
(lamp-buzzer), XFORM-1 (power supply), 40' an 10' modular cable.
Hear our unique remote alarm
tone.
KIT-M Setup
1. Select a location for the DPX-M, on the monitored device or headwall.
Mount to a clean smooth surface with 3m Dual Lock® (included). Check for a secure
mounting.
2. Connect remote cable to the PZ-M buzzer, aux. input cable (if included).
If any connectors are not used, a dummy plug is required (2 included) to silence the
alarm.
3. Plug the MIC-M cable into one of the jacks labeled MIC / IN on the
DPX-M.
4. Plug in the 24 volt wall transformer and connect it to the
DPX-M.
5. Simulate an alarm condition on the monitored piece of equipment. Determine
where the audible alarm is coming from and hold the MIC-M in a position within one to two inches of the noise
source.
6. If necessary, gradually increase the sensitivity to a point where a bright
steady red light is obtained. Normal setting is 75%-85% of full clockwise.
7. Mount the MIC-M to a clean smooth surface with 3m Dual Lock® and check for
a secure mounting.
8. Re-test the setting with an audible alarm. Secure cables with strain
relief as required.
9. Simulate an alarm condition and set the time delay on the DPX-M with a
small slotted
screwdriver. 5 to 15 seconds are typical delays to absorb nuisance alarms.
10. Test that both outputs perform as expected. Remote powers PZ-M
buzzer,
OUT controls
external nurse call (if used).
11. Secure cables as required. Use the strain relief on DPX-M to inhibit
accidental plug removal.
12. This system must be tested after each reinstallation and
at
regular intervals (preferably at the start of each
shift).
* Shown with two noise sensors
Pictured at right
is the ideal method of mounting the DPX-M time delay and MIC-M noise sensor. A 3 gang plastic electrical plate
is mounted to the wall providing a clean smooth surface. The DPX is held securely with four strips
of 3m Dual Lock® (included). The MIC-M is held in place by using an
extra 1 inch square piece of 3m Dual Lock when it is not in use. The cable connecting the remote buzzer is
hidden in the wall. The mechanical integrity of these devices must be maintained to assure proper operation.
All mounting hardware, cables, connectors and plugs must be regularly inspected for wear and
tear. All devices must be securely mounted at all times. If a mounting situation arises that does
not seem safe do not use the system! Contact our technical department for advice on correcting those
situations.
